ECO-WORTHY 100 Watt 12V 12Volt Off Grid Monocrystalline Portable Foldable Solar Panel Suitcase with Charge Controller.
- It is a prepared to-utilize attachment and play compact sun powered arrangement. You simply require collapsing up the sunlight based board and face its sun based surface direct to sun.
- Ideal for climbing, outdoors, and military use, off-lattice sunlight based board framework, convoy, RV, vessel, Green house sun based board framework, sun powered pump watering framework etc.
- Pre-introduced controller and pre-wired for 12V DC framework charging, you don’t need to include additional controller.
- The fitting and play framework rapidly begins to create vitality and you can utilize it to control up any 12V system.

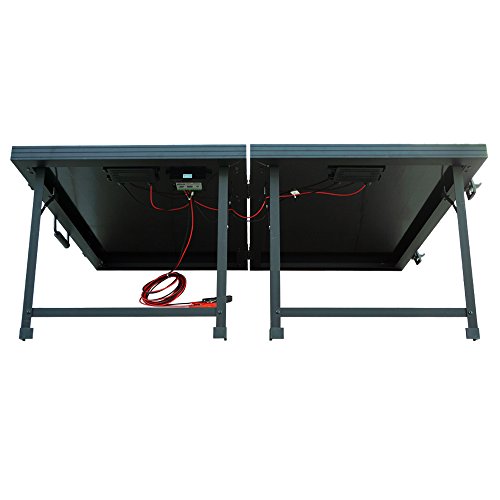

- Package incorporates: 1pc 100W Foldable Mono Solar Panel Kit (2pcs 50W mono sun based board & 1pc pre-introduced 15A charge controller & 1 sets pre-introduced 10ft sunlight based links with 1 sets 30A gator cuts & 1 set movable aluminum stand, handle and latches)

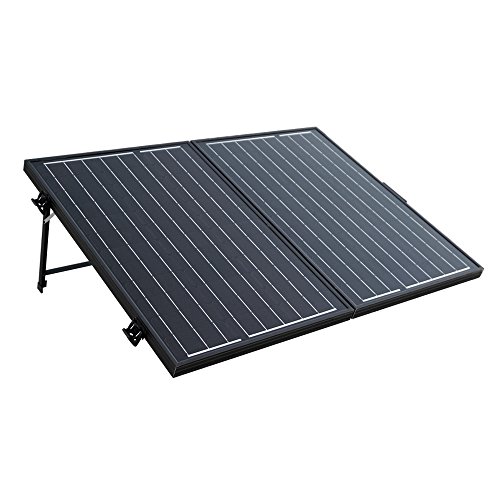

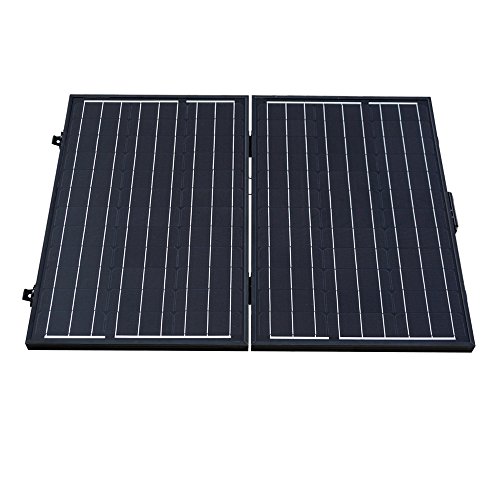

100W Foldable Mono Solar Panel
Related power: 100W
Vop: 17.9V
Working current (Iop): 5.59A
Yield Tolerance: ±3%
Mild coefficient of Isc: (010+/ – 0.01)%/℃
Mild coefficient of Voc: – (0.38 +/ – 0.01)%/℃
Mild coefficient of energy Voc: – 0.47%/℃
Temperature go: – 40℃ ~ +80℃
Edge and leg: Heavy obligation aluminum
Measurements: 690*510*73mm(27.3*20.16*3.1in)
Weight: 11.9kgs(26.25lbs)
15A PWM Charge Controller
Ostensible yield: 12V/24V
Max charge current: 15A
Max stack current: 15A
Max sunlight based board: 270Watt/540Watt
Over release insurance: 10.8V/21.6V
Reset: 12V/24V
Over charger insurance: 14.5V/29V
Buoy charge: 13.8V/27.6V
Self utilization: 2mA/4mA
Measure: 4.3*2.3*1.3in (110*59*33mm)
Working temperature: – 20℃~60℃
Net weight: 0.24lbs(110g)
Package Included:
1pc 100W Black Frame Folding Mono Solar board
(2pcs*50W Mono Solar Panel with 1pc Pre-introduced 15A Charge Controller, 1 sets Alligator Clip and Legs)
